Cr12 Steel Rollers Cold Roll Forming Machine , U Shape Purlin Roll Forming Equipment

Place of Origin : Botou Hebei China

Brand Name : HC

Certification : ISO

Model Number : HC210

MOQ : 1set

Price : 8000-29000USD

Packaging Details : Main machine is nude,the computer control box is packed by carton box

Delivery Time : 30days

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Supply Ability : 20 sets/month

Contact Now

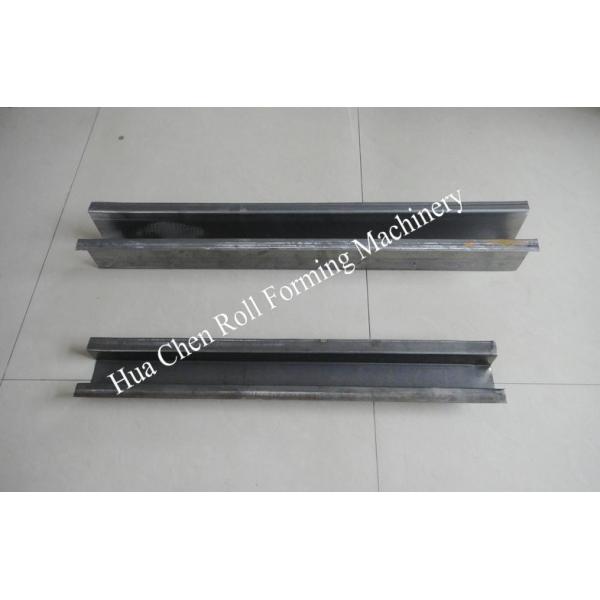

U Shape Purlin Cold Roll Forming Machine

Cr12 Steel Rollers Cold Roll Forming Machine , U Shape Purlin Roll Forming Equipment

Quick Detail:

1. Suitable to process: Color steel plate

2. Width of the plate:210mm

3. Rollers: 13 rows

4. Dimensions: 6.6*1.35*1.51m

5. Power: 5.5+4kw

6. Rolling material: shaft bearing steel(quenching)

7. Thickness of the plate:0.8-1.2mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control

Description:

Keel Roll Forming Machine Main parameter

No.	Main parameter of Keel Roll Forming Machine
1	Suitable to process	Color steel plate
2	Width of the plate	210 mm
3	Rollers	13 rows
4	Dimensions	660013501510mm
5	Power	5.5+4kw
6	Rolling material	shaft bearing steel(quenching)
7	Thickness of the plate	0.8-1.2 mm
8	Productivity	20m/min
9	Diameter of the roller	Φ50mm
10	Voltage	380V 50Hz 3phases
11	Material of the cutting plate	Cr12
12	Hydraulic	40#
13	Processing precision	Within 1.00mm
14	Control system	PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

Competitive Advantage

1. CE certification

2. noiseless

3. easy operate

4. high output

5. easy maintain

Cr12 Steel Rollers Cold Roll Forming Machine , U Shape Purlin Roll Forming Equipment
